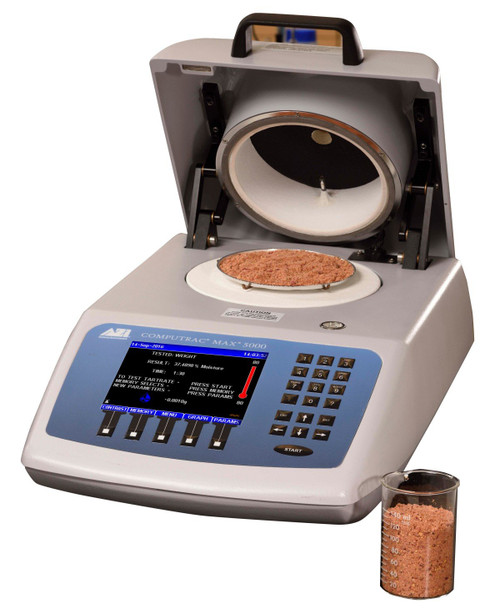

The Computrac® MAX® 5000XL moisture, solids, and ash analyzer can provide accurate readings from a single sample, offering many of the same features of thermogravimetric analyzers at a fraction of the cost. With a maximum temperature of 600°C and a maximum sample size of 100 grams, the MAX® 5000XL has the versatility for a wide range of material-testing tasks.
Moisture | Solids Range: | 0.1% to 99.9% |
Ash | LOI Range: | 0.5% to 100% |
Moisture Resolution: | 0.0001% |
Balance Resolution: | 0.0001 g |
Moisture Repeatability: | <5% RSD for samples >10% moisture |
Ash Repeatability: | ≤5% RSD for samples >10% ash |
Temperature Range: | 25°C to 600°C |
Heating Element: | Ceramic |
Sample Size: | 100 mg to 100 g |
Results: | Moisture, Solids, Dry Weight, Ash, LOI |
Ending Criteria: | User-adjustable: Prediction, Rate, Time, Reliability and 4 other combinations |
Memory: | Stores up to 250 programs, last 1000 test |
Statistical Analysis: | Mean, SD, RSD |
Balance Calibration: | Menu-driven calibration by the end-user; |
Heater Calibration: | Menu-driven, NIST traceable calibration by the end-user with optional |
Operating Environment: | 0-35 ºC at <50% RH; |
Power Requirements: | 100-120 VAC, 50/60 Hz, 8A or |
Dimensions: | 18.5” L x 12.7” W x 9.5” H |
Weight: | 31 lbs. (14 kg) |
Warranty: | Two years, factory parts and labor (one year international) |
Rear Panel Connections: | Ethernet, serial port, parallel port |
Display: | 1/4 VGA, 320 x 240 pixel, color |
Certifications: | UL, CE |
21 CFR Part 11 Compliant (optional): Meet regulatory compliance standards for pharmaceutical and medical device companies
ASTM D6980-12: Standard Test Method for Determination of Moisture in Plastics by Loss in Weight (MAX® 4000XL and MAX® 5000XL)
ASTM D7232-06: Standard Test Method for Rapid Determination of the Nonvolatile Content of Coatings by Loss in Weight (MAX® 4000XL and MAX® 5000XL)
ASTM C471M-16: Standard Test Methods for Chemical Analysis of Gypsum and Gypsum Products (Metric)
It also correlates well with popular methods, including ASTM D5630, ASTM D4574, ASTM E1534, and more.
